Stihl AL Chargers

Description

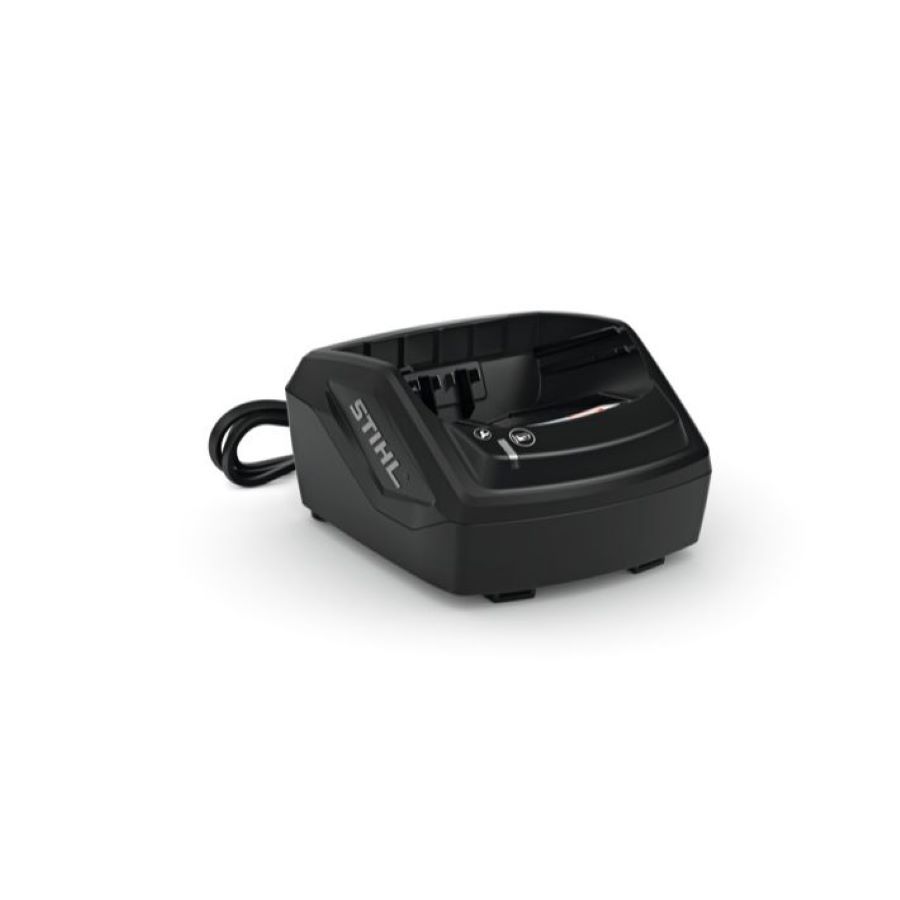

AL 101 Standard Charger –

230 V charger, recommended for STIHL AK System batteries (can also be used with AP System batteries). With operating mode indicator (LED) and passive battery cooling. Cable tie with Velcro strap. The charger can be wall mounted if required.

AK System charge times:

• AK 10 battery in 95 minutes
• AK 20 battery in 180 minutes
• AK 30 battery in 205 minutes

AP System charge times:

• AP 100 battery in 100 minutes
• AP 200 battery in 200 minutes
• AP 300 battery in 250 minutes
• AP 300 S battery in 300 minutes
• AP 500 S battery in 355 minutes

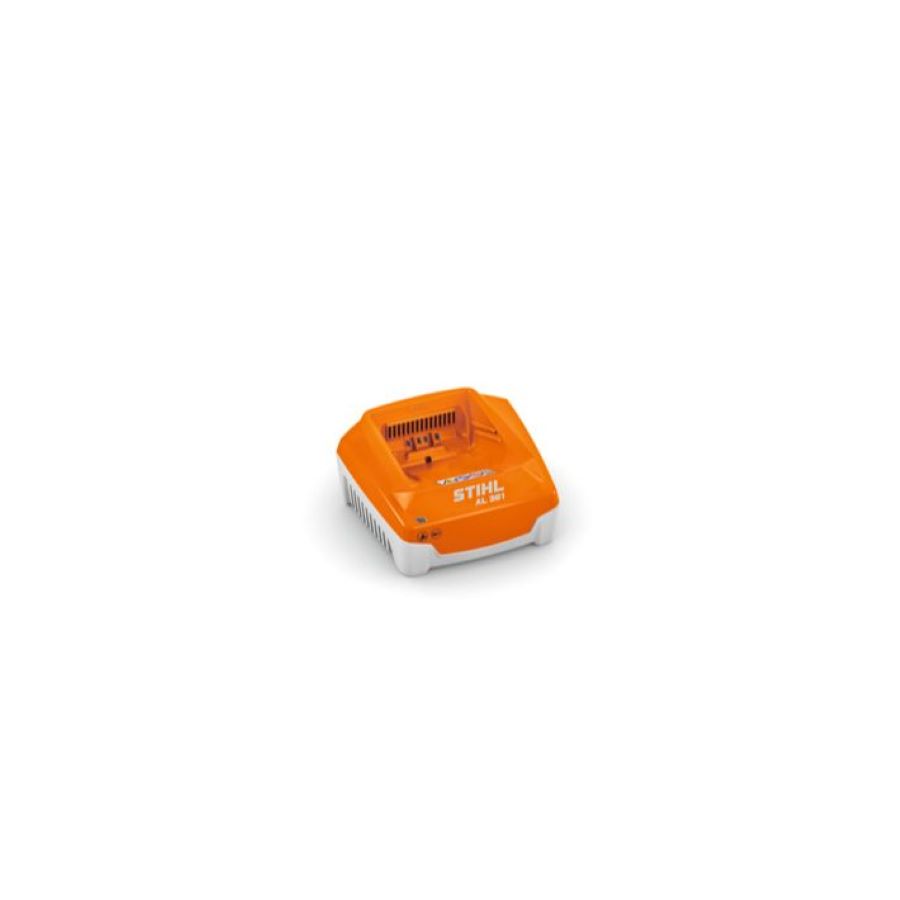

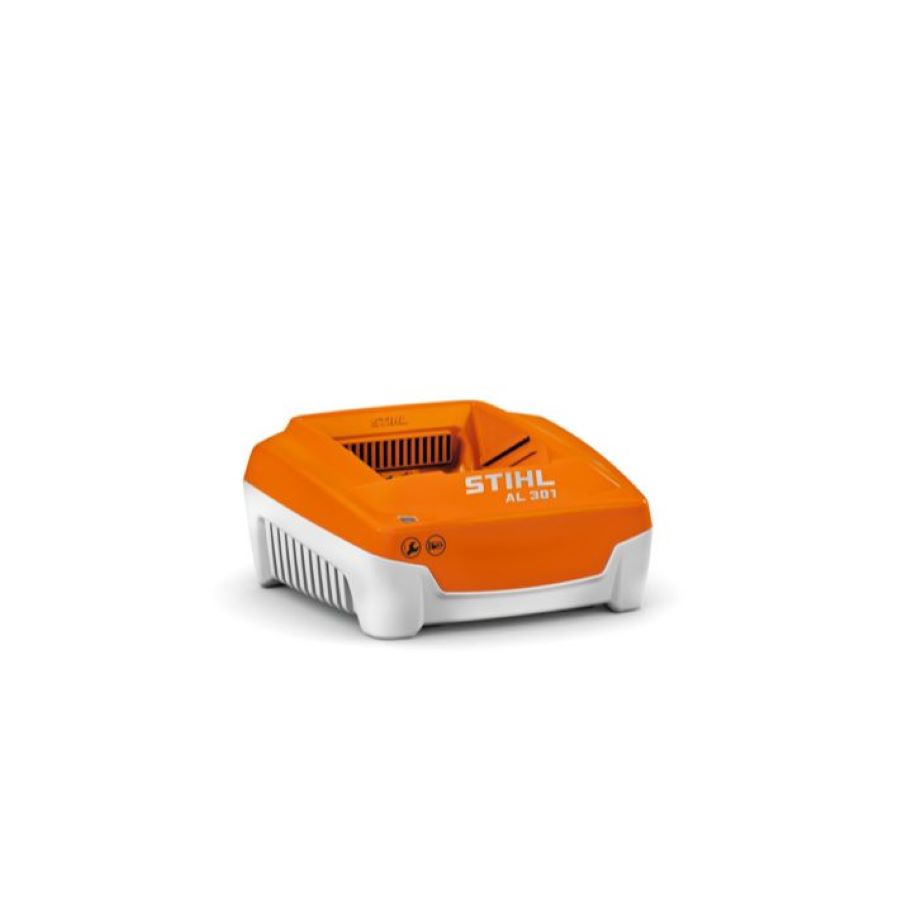

AL 301 Fast Charger

-230 V quick charger for STIHL AK System and AP System batteries. This charger has a 6.5 A charging current for fast recharge times and a built-in fan for active battery cooling.

The AL 301 automatically switches off when the battery is fully charged to prevent overcharging too. Two-stage charging means the battery is first charged at a constant current up to a predetermined voltage limit. Then, the charger switches over to charging at a constant voltage before the current reduces itself automatically until charging is complete. A built in cable tie with Velcro strap on the back means you can wind the cable to the charger to reduce its length. Plus, this charger can be wall mounted for space saving storage.

AK System charge times:

• AK 10 battery in 45 minutes
• AK 20 battery in 55 minutes
• AK 30 battery in 60 minutes

AP System charge times:

• AP 100 battery in 45 minutes
• AP 200 battery in 55 minutes
• AP 300 battery in 60 minutes
• AP 300 S battery in 70 minutes
• AP 500 S battery in 90 minutes
• AR 2000 L backpack battery in 150 minutes
• AR 3000 L backpack battery in 220 minutes

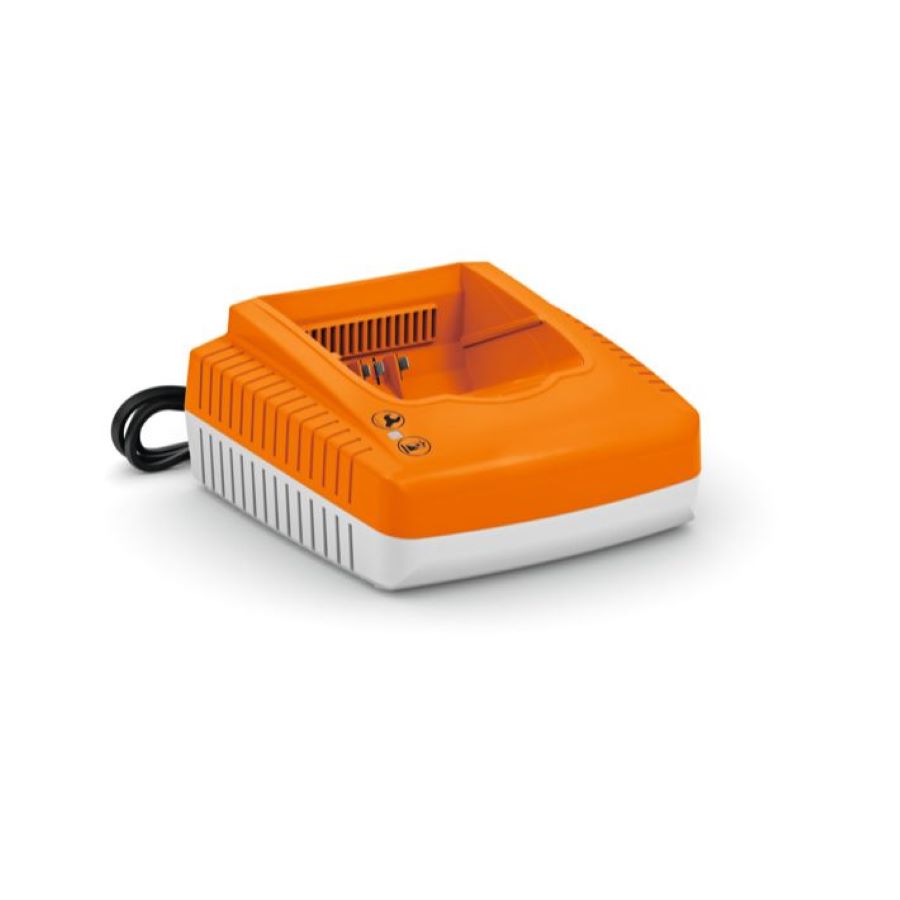

AL 500 High Speed Charger-

230 V hi-speed quick charger, recommended for STIHL AP System batteries (can also be used with AK System batteries). With operating mode indicator and active battery cooling. Cable tie with Velcro strap. The charger can be wall mounted if required.

AP System charge times:

• AP 100 battery in 45 minutes
• AP 200 battery in 45 minutes
• AP 300 battery in 35 minutes
• AP 300 S battery in 45 minutes
• AP 500 S battery in 55 minutes
• AR 2000 L battery in 150 minutes
• AR 3000 L battery in 220 minutes

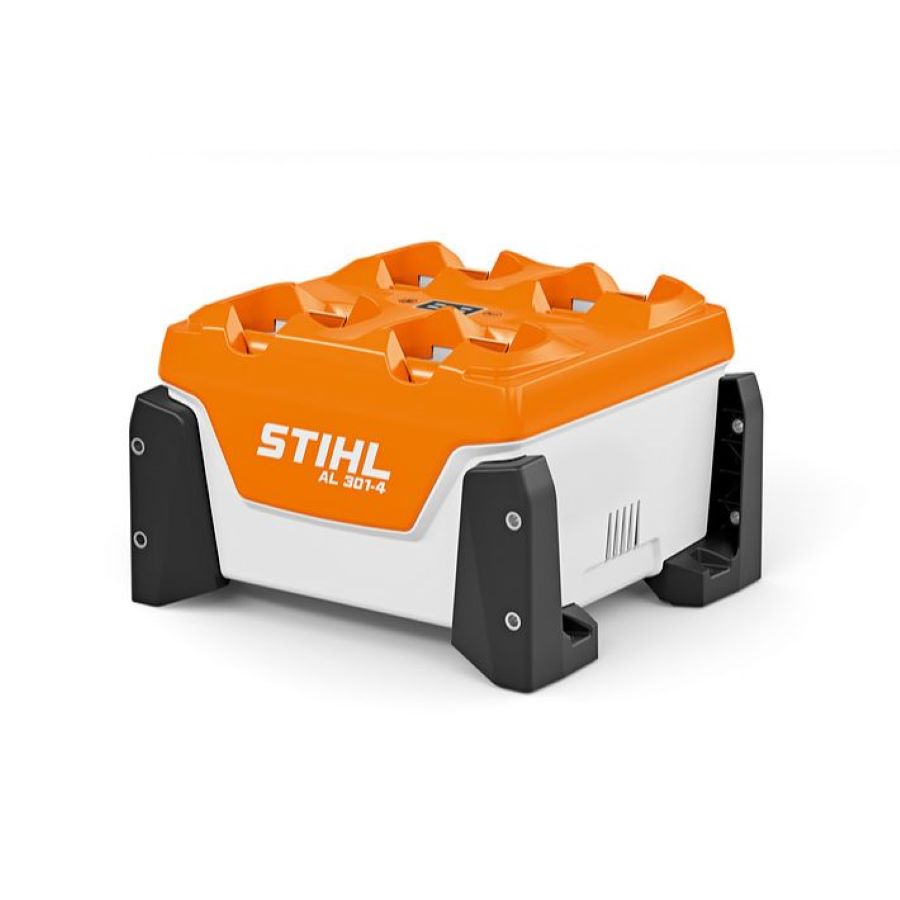

AL 301-4 Multi Fast Charger–

230 V. Multiple battery charger for sequential charging of up to four AP batteries or AR L batteries with an AR L connecting cable and AP adapter.Cannot be used with AK batteries.Can be secured either to the wall or on a shelf, or permanently installed in a vehicle. Energy supply via an external feed. With operating mode indicator via LED and active battery cooling. AR L connecting cable and AP adapter for charging AR L backpack batteries not included in the scope of delivery.

AP System charge times:

• AP 100 battery in 45 minutes
• AP 200 battery in 55 minutes
• AP 300 battery in 75 minutes
• AP 300 S battery in 90 minutes
• AP 500 S battery in 90 minutes
• AR 2000 L battery in 290 minutes
• AP 3000 L battery in 430 minutes
